Basic Info.
Model NO.
Powerwall Y1
Rechargeable
Yes
Size
Medium
Application
Electric Power Systems
Product Name
Home Powerwall Battery
Capacity
100ah 200ah
Voltage
48V/51.2V
Cycle Life
6000 Times
Warranty
5years
Weight
68/98kg
Certification
CE/RoHS/Un38.3/MSDS
Cell Type
Grade-a Lithium-Ion
Communication
Can/RS485/Dry Contact
Transport Package
Wooden Package
Specification
680*480*180(220)mm
Trademark
Sunpal
Origin
China
HS Code
8507600090
Production Capacity
1000 Pieces/Day
Product Description
| Model | PP-Y1-5kWh | PP-Y1-10kWh |
| Nominal Voltage | 48V | |
| Nominal Capacity | 100Ah | 200Ah |
| Battery Cell | 3.2V 100Ah Prismatic Battery Cell | |
| Parallel Capacity | yes, 15units maximum | |
| Max.Charge Current | 100A | |
| Max.Discharge Current | 100A | |
| Discharge Voltage Range | 41-54.5V | |
| Charge Voltage Range | 53.5-54.5V | |
| Design Life | 15+ Years(25ºC/77ºF) | |
| Cycle Life | >6000 Cycles, 25ºC | |
| Communication Port | CAN,RS485,RS232 | |
| Size L*W*H(mm) | 685*485*220mm | |
| Weight | 68Kg±1Kg | 98Kg±1Kg |
| Working Temperature | -10-50ºC | |
| Shelf Temperature | -20-50ºC | |
| Humidity | 5%~95% | |
| Lithium Battery Standard | UL1642/CE/IEC62619/UN38.3/MSDS | |
Backup Power
Sunpal powerwall use stored solar energy to power your home during an outage, recharge with solar energy you produce, keep appliances running
seamlessly. PowerPal Y1 is a compact home Lithium Ion battery that reduces your reliance on the grid by storing your solar energy for use when the
sun is not shining.
seamlessly. PowerPal Y1 is a compact home Lithium Ion battery that reduces your reliance on the grid by storing your solar energy for use when the
sun is not shining.

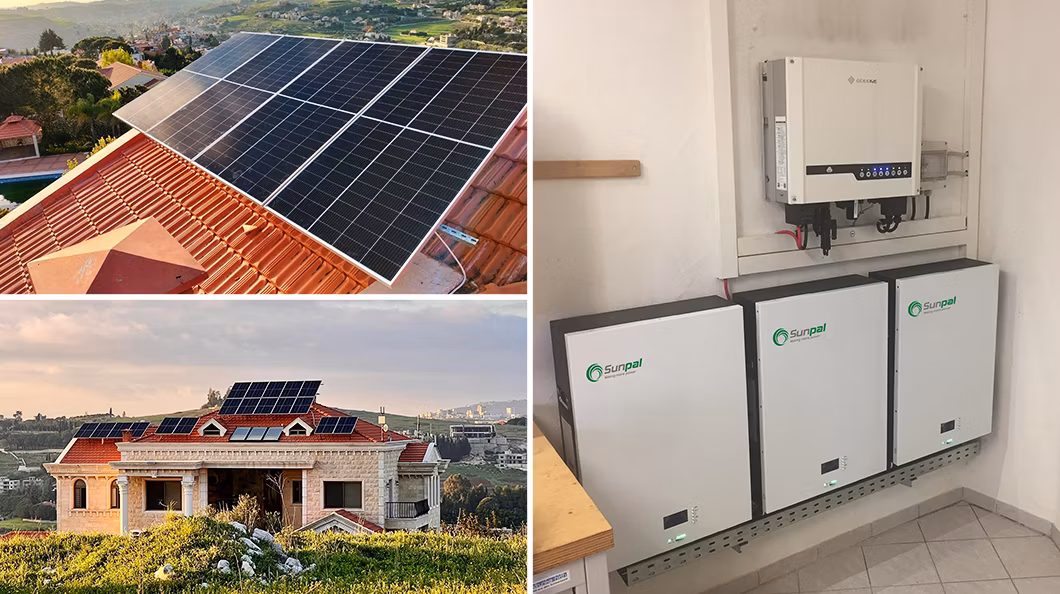

10KWH Home Energy Storage Lithium Battery System In Thailand
15KWH Powerwall Home Battery System In Germany
15KWH Lithium Ion Lifepo4 Battery System In Jamaica
and won a good reputation in quality. With over 14 years of development, Sunpal now has factory area covers 150,000 square meters, with 600 experienced
employees. Our product range covers AGM batteries 2V/6V/12V, Deep Cycle batteries, GEL batteries, Front Access batteries, OPzS, OPzV as tubular batteries,
lithium battery and powerwall.
