Basic Info.
Model NO.
LFP-48/400
Battery Type
LiFePO4 Battery
Dimension(W*H*D)mm
525*815*238mm
Peakpower(Only Discharging)
12kw for 3 Seconds
Peakcurrent(Only Discharging)
235A for 3 Seconds
Cooling Type
Natural Cooling
Life Span
>15 Years
Application1
Solar System
Application2
Solar Power Battery
Application3
Solar Battery
Application4
Storage Battery
Application5
Battery Pack
Application6
Rechargeable Battery
Application7
Power Bank
Application8
Car Battery
Type
Lithium-Ion Battery Pack
Connection Mode
Series and Parallel
Rechargeable
Chargeable
Discharge Rate
High Discharge Rate
Size
Medium
Accessories Type
Chargers
Electrolyte
Li-ion
Rated Capacity
10kwh
Standard Voltage
48V
Usage
Solar PV System
Transport Package
Carton / Pallet
Specification
102kgs
Trademark
Aoboet
Origin
China
HS Code
85076000
Product Description
| Specification |
| Total Energy: 20KWh |
| Usable Energy: 18KWh |
| Nominal charge/discharge power: 10KW |
| Efficiency: >97% |
| Peak power (only discharging): 24KW for 3 seconds |
| Peak current (only discharging): 235A for 3 seconds |
| Voltage: 48-56DC |
| Nominal Voltage: 51.2VDC |
| Nominal current: 300A |
| Max charging voltage: 57.6V |
| Operating Condition: Indoor or Outdoor |
| Operating Temperature: From -10ºC to 45 ºC |
| Dimension(W*H*D) mm: *815*238mm |
| Weight: 128KGS |
| Cooling Type: Natural cooling |
| Case material: Metal + Plastic |
| Installation: Free standing / Wall mounting |
| Protection grade: ip64 |
| Max number of parallel connection (Optional): 4 |
| Warranty:5 + 5 Years |
| Life Span: >15 Years |
| Communication: CAN/RS485 |
| Protection mode: Triple hardware protection |
| Battery protection: Over-current / Over-voltage/Short circuit/Low voltage/ |
| Certification |
| Safety: Cell UL 1973 Battery pack TUV (IEC62619(IEC 62040) |
| Transportation: UN38.3 |
| Key Features 1. High Inverter Compatibility 2. Reliable LiFePO4 battery Cell 3. 5 + 5 Years Warranty 4. Scalable up to 60kWh (4 parallel) 5. Monitor: The LiFePO4 battery BMS built-in with WIFI module, the battery running information could be seeing in mobile phone and computer. 6. Easy firmware update: The BMS firmware can be updated to the latest version 7. Cooling: Natural cooling |  |
Intelligent Service Platform for remote monitoring and management
Remote monitored by APP for LiFePO4 battery system
Remote monitored by APP for LiFePO4 battery system
Communication compatible Inverter brand that have been tested and are supported
SOLIS GROWATT DEYE MEGAREVO LUXPOWER KEHUA SOFAR INVT,.. Etc.
Aoboet 48V Lithium Battery System
*: Data setting of inverter when battery working with COM. FREE mode
Aoboet High Voltage Lithium Battery system
SOLIS GROWATT DEYE MEGAREVO LUXPOWER KEHUA SOFAR INVT,.. Etc.
Aoboet 48V Lithium Battery System
| Brand | Hybrid Inverter | AC coupled Inverter |
| LUXPOWER | LXP-(3-5)K hybrid | LXP-3600ACS |
| SOLIS | RHI-(3-5)k-48ES | RAI-3k-48ES-5G |
| SERMATEC | SMT-5K-TL-LV | |
| KEHUA | SPH3600-5000 | |
| SOFARSOLAR | HYD (3000-6000)-ES | ME3000 |
| GROWATT | SPH3000-6000 | |
| INVT | BD (3-5) KTL, BD (3-5) KTL-HS | BD3k-PS |
| MEGAREVO | R3KL1~R5KL1 R3K6L1~R6KL1 | |
| DEYE | SUN-(5~6)K-SG01LP1-US SUN-(7.6~8)K-SG01LP1-EU |
*: Data setting of inverter when battery working with COM. FREE mode
| Item | Data | Note | ||
| Uhome-NCA6.8kWh/LV | Uhome-LFP5.8kWh/LV | Uhome-LFP2400 | ||
| Max. Charge Current | 60A/0.5C | 57A/0.5C | 30A/0.5C | |
| Max. Discharge Current | 60A/0.5C | 57A/0.5C | 30A/0.5C | |
| Rated Voltage | 48V | 48V | 51.2V | |
| Capacity | 131Ah | 120Ah | 50Ah | |
| Over Charge Voltage | 58.0V | 51.7V | 57.6V | |
| Low Voltage | 42V | 45.0V | 48.0V | |
| Float charge voltage | 57.7V | 51.5V | 56.0V | If needed |
| Over Temperature | 45ºC | 45ºC | 45ºC | |
| Low Temperature | -10ºC | 0 | 0 | |
| Constant Charge Voltage | 57.5V | 51.5V | 55.8V | |
| Discharge End Voltage | 43V | 45V | 48.0V | |
Aoboet High Voltage Lithium Battery system
| Brand | Inverter type | Firmware Version | Note |
| GINLONG | RHI-3P(5-10)kW-HVES-5 | V04 | |
| GOODWE | GW10K-ET | 030310 | Special firmware BMS |
| MEGAREVO | R(7~12)KH1 | ARM V1.01.35 DSP V1.02.10 |
Functions of LiFePO4 Battery Pack BMS (Battery Management System):
(1) Measurement of LiFePO4 battery terminal voltage
(2) Energy balance between single LiFeP04 cells
(3) Total battery voltage measurement
(4) Total battery current measurement
(5) SOC calculation: estimate the remaining power of the Lithium battery
(6) Dynamically monitor the working state of the LiFePO4 battery pack: prevent over charging or over discharging
(7) Real-time data display
(8) Data recording and analysis: maintain the reliability and efficiency of the entire battery operation
(2) Energy balance between single LiFeP04 cells
(3) Total battery voltage measurement
(4) Total battery current measurement
(5) SOC calculation: estimate the remaining power of the Lithium battery
(6) Dynamically monitor the working state of the LiFePO4 battery pack: prevent over charging or over discharging
(7) Real-time data display
(8) Data recording and analysis: maintain the reliability and efficiency of the entire battery operation

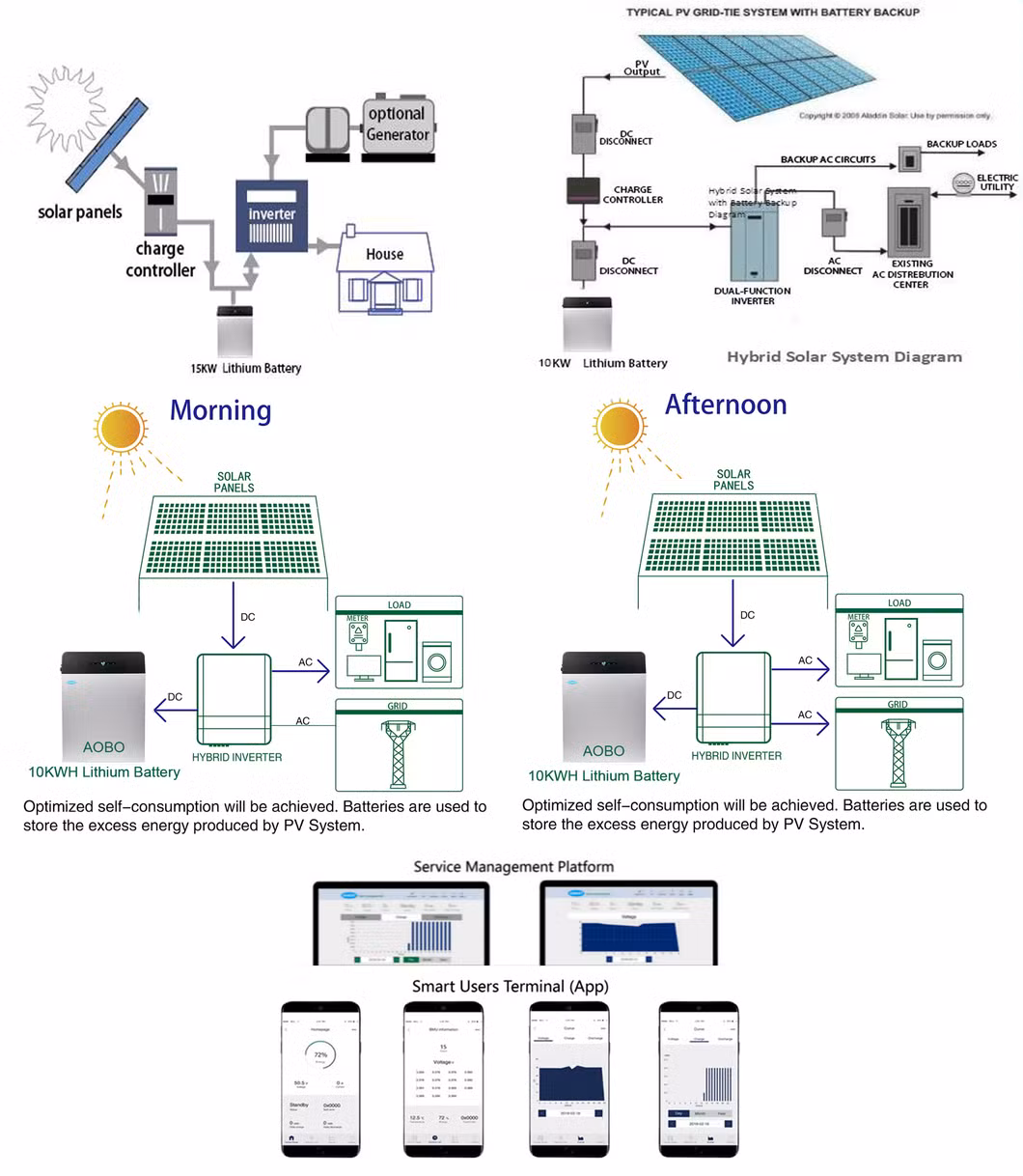

Application of LiFePO4 Battery Pack with BMS
